Ditch Witch Drill Pipe: A Technical Performance Review

Ditch Witch drill pipe is a premium, high-strength component essential for horizontal directional drilling (HDD). Forged from a single piece of high-grade steel, it's engineered specifically to match the torque and performance specifications of Ditch Witch drills. This integrated design ensures maximum durability, superior steering, and minimizes the risk of downhole failure, making it a critical asset for jobsite productivity and profitability.

Understanding Ditch Witch Drill Pipe: Core Features and Benefits

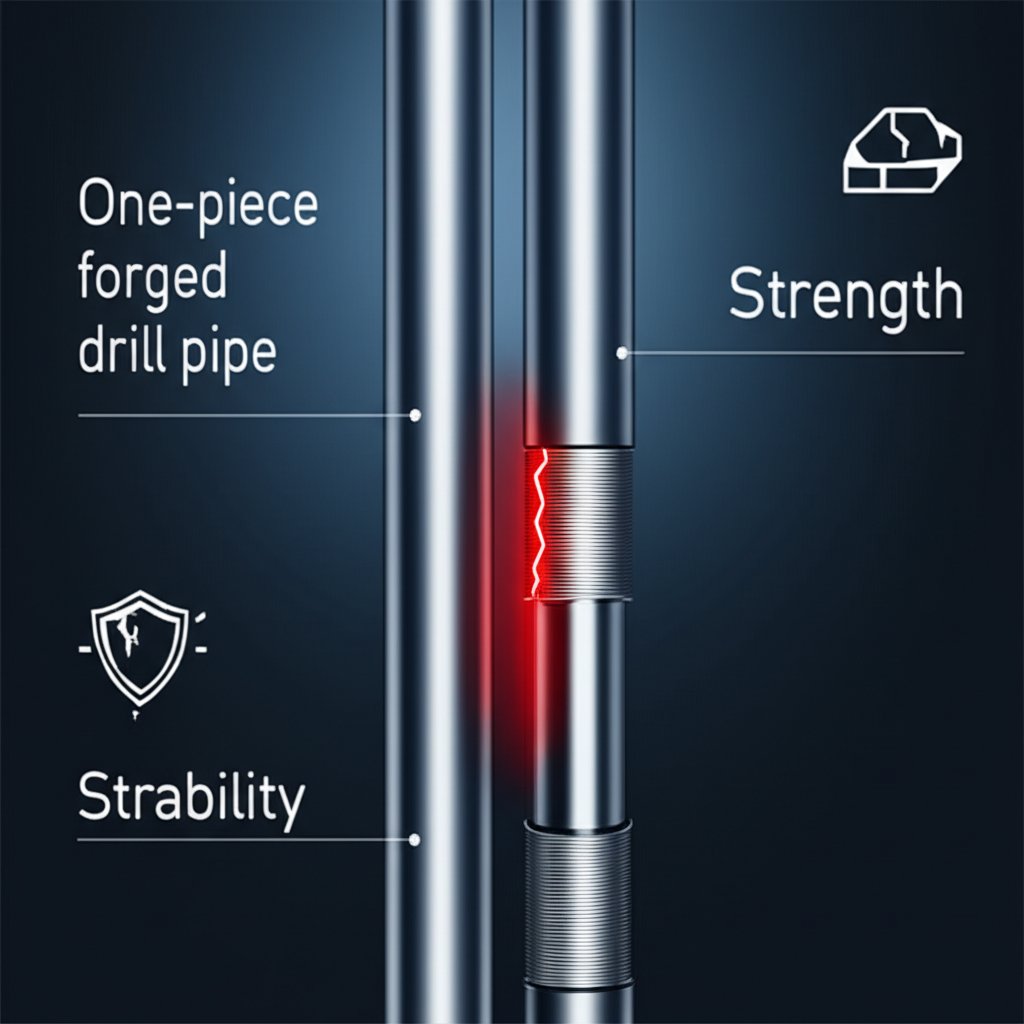

At the core of any successful horizontal directional drilling operation is the drill string, and Ditch Witch drill pipe is engineered to be its strongest link. Unlike generic or multi-piece pipes, Ditch Witch distinguishes its products through a patented manufacturing process that creates what they assert is the strongest pipe available. This claim is rooted in their unique one-piece forging method. Pipes like the Forged HD model are crafted from a single piece of U.S.-made AISI 4130 steel, which meets the rigorous S-135 strength standards. This process eliminates friction welds, which are common failure points in other types of drill pipe, resulting in a more reliable and durable component.

The intentional design of matching the pipe to a specific drill is a significant advantage. As detailed in Ditch Witch's technical documentation, when drills and pipes are designed together, it ensures the rotary torque of the drill is perfectly matched to the pipe's makeup torque specifications. This synergy prevents operators from having to de-rate a machine's power to avoid damaging the pipe or, conversely, using an underpowered drill that can't properly secure the pipe connections. This leads to more efficient power transfer, extended thread life, and a reduced risk of the pipe string breaking loose during a bore.

Ditch Witch offers several types of drill pipe, including the Power Pipe® HD and Forged HD series, each designed for specific needs. Key features across these premium lines focus on maximizing operational uptime and longevity. Many models also include a wear indicator groove, a visual tool that helps operators accurately gauge the wear on the tool joint and predict replacement needs more effectively than a simple visual inspection. These design considerations deliver tangible benefits on the jobsite.

• One-Piece Forged Construction: Eliminates weak points from welds, providing superior strength and reliability under high-torque conditions.

• High-Strength Steel: Utilizes premium steel grades like AISI 4130 (meeting S-135 standards) for an optimal balance of strength and flexibility.

• System-Matched Design: Engineered to work seamlessly with the torque and power output of specific Ditch Witch directional drills, enhancing overall performance.

• Enhanced Durability: Features the industry's most wear-resistant tool joints and threads, designed to withstand the rigors of challenging ground conditions.

• Improved Bend Radius: While maintaining stiffness for effective steering, the pipe is designed to offer an optimal bend radius, reducing metal fatigue when operated correctly.

Official vs. Compatible Pipe: Making the Right Choice

When sourcing drill pipe for Ditch Witch rigs, operators face a key decision: purchasing from the Original Equipment Manufacturer (OEM) or opting for aftermarket compatible pipes. OEM pipes from Ditch Witch are designed, tested, and built by the same company that makes the drill. This guarantees a perfect match in terms of makeup torque, thread profile, and overall performance, which helps minimize operational risks and maximize the efficiency of the entire drilling system. The manufacturer's confidence is backed by guarantees on certain HD pipe models, a testament to their integrated design and quality control.

On the other hand, the market offers a wide array of third-party compatible drill pipes. For professionals seeking robust solutions, companies like Geomaster provide high-quality HDD drill rods engineered for strength and durability, ensuring reliable performance for Ditch Witch compatible rigs through rigorous manufacturing and material selection. Other reputable suppliers, such as TuffRod and Radius HDD, also specialize in manufacturing compatible rods designed to fit specific Ditch Witch models like the JT20 or JT30 series. These aftermarket options can offer competitive pricing and wider availability, making them an attractive alternative for many contractors.

The choice between OEM and compatible pipe involves a trade-off between guaranteed system integration and potential cost savings. While OEM pipe provides peace of mind through certified performance, high-quality aftermarket pipe from established manufacturers can deliver reliable service. To make an informed decision, it's crucial to compare the offerings based on several key factors.

Before purchasing a compatible pipe, operators should ask for detailed specifications regarding the steel grade, heat treatment process, and thread machining precision to ensure it meets the demands of their equipment and projects.

Extending Drill Pipe Life: Maintenance and Proper Technique

Even the highest quality drill pipe is a consumable item that will eventually wear out. However, its useful life can be significantly extended through proper operational techniques and routine maintenance. Neglecting these practices can lead to premature failure, costly downtime, and potentially losing hundreds of feet of tooling downhole. The two most critical factors influencing drill pipe longevity are managing the bend radius and the correct use of drilling fluid.

Every drill pipe has a recommended bend radius, which dictates the maximum angle it can be steered without inducing metal fatigue. Exceeding this radius, often done in an attempt to shorten the distance of a bore, permanently weakens the pipe's structure. Over time, this repeated stress will cause the pipe to fail. Therefore, proper bore planning that respects the pipe's bend radius limitations is the first step in preserving your investment. Adhering to the specified entrance angle and making gradual steering adjustments are crucial for avoiding unnecessary fatigue on the drill string.

Drilling fluid is equally vital. Its primary functions are to cool the drill head and pipe, lubricate the drill string, and carry cuttings out of the bore. Drilling generates immense heat and friction, which can rapidly wear down the outer surface of the pipe. A properly mixed and applied drilling fluid creates a lubricating barrier that reduces this wear and tear. Furthermore, by effectively removing soil and rock cuttings, it prevents the bore from packing up, which would increase rotational torque and stress on the pipe, raising the risk of a stall or break. The correct fluid mixture and flow rate depend on the ground conditions and equipment, so consulting with a dealer or using a resource like the Ditch Witch fluid formulator is highly recommended.

By integrating best practices into daily operations, crews can maximize the return on their drill pipe investment. A proactive approach to maintenance not only saves money on replacements but also enhances jobsite safety and efficiency.

1. Adhere to the Recommended Bend Radius: Always plan your bore path to stay within the pipe's specified limits to avoid metal fatigue.

2. Manage Drilling Fluid: Ensure the correct mix and flow of drilling fluid to cool, lubricate, and clear cuttings from the bore. This reduces friction and heat-related wear.

3. Regularly Inspect Threads: Before each use, clean and inspect the pin and box connections for any signs of damage, galling, or excessive wear. Use a thread gauge to check for stretching.

4. Apply Proper Torque: Use the drill's recommended makeup torque settings to ensure connections are secure but not over-tightened, which can damage threads.

5. Use Thread Compound: Apply high-quality thread grease to prevent seizing and corrosion, ensuring smooth makeup and breakout.

6. Handle and Store Correctly: Avoid dropping pipes or stacking them in a way that could damage the threads or bend the pipe body. Use rod wipers to clean pipe as it's removed from the bore.
