The Eagle Claw in Horizontal Directional Drilling: Applications, Selection, and Quality

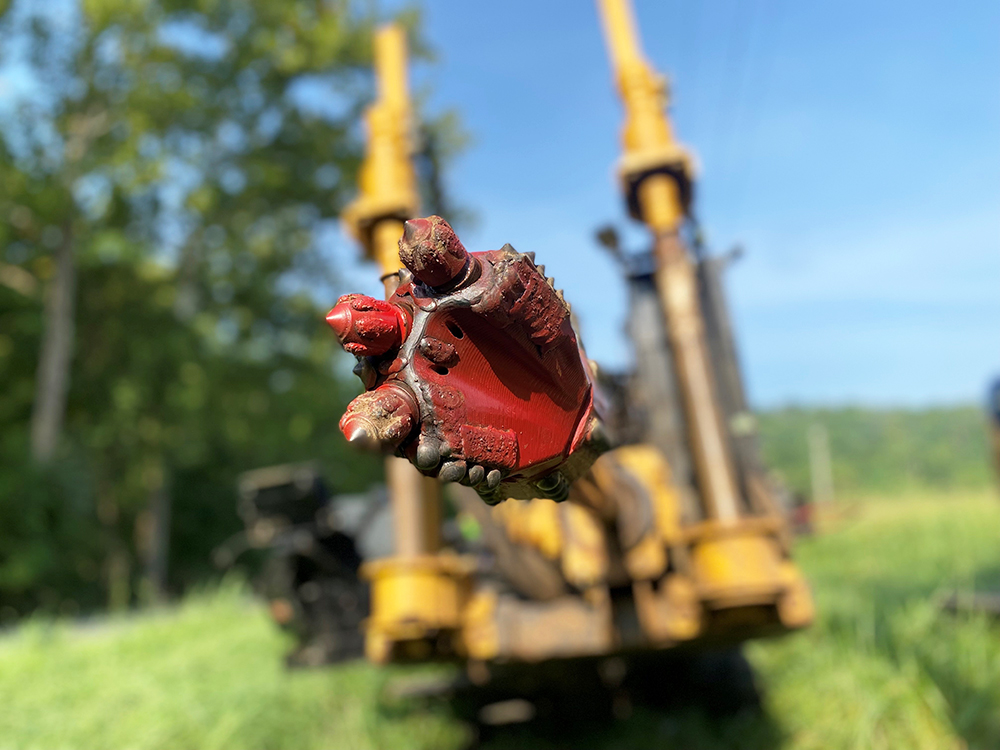

The Eagle Claw is a tri-cutter hard ground drill bit manufactured by Melfred Borzall, designed specifically for Horizontal Directional Drilling (HDD).First introduced in 2004, it has become one of the HDD industry's most popular bits for challenging ground conditions, celebrating over 20 years of continuous innovation. The Eagle Claw was developed in response to contractor demands for a bit that could withstand hardpan, sandstone, and other mixed hard ground conditions without sacrificing steering capability or wearing out too quickly.

Primary Industries and Applications

The Eagle Claw is primarily used in the horizontal directional drilling industry, which serves several critical infrastructure sectors:

• Telecommunications – Installing fiber optic and communication cable networks beneath roads, urban areas, and environmentally sensitive regions

• Natural Gas Distribution – Laying gas pipelines with minimal surface disruption

• Water Supply – Installing water mains and distribution lines

• Sewer and Wastewater – Constructing sewer installations and force mains

• Oil and Gas – Extended from its original oil and gas sector applications

• The Eagle Claw is specifically designed for aggressive pilot drilling in hard, compact, and abrasive ground conditions where directional blades struggle

• It excels in formations such as caliche, cobbles, gravel, hardpan, sandstone, and shale

• The bit is not suitable for soft, flowing soils where blade-style tools would mix and clean more effectively




How to Select the Right Eagle Claw for Your Needs

Selecting the appropriate Eagle Claw requires careful consideration of several factors:

    1. Ground Conditions – The Eagle Claw SD performs especially well in hard clay, mixed ground, caliche, shale, and other formations where directional blades lose efficiency or steering control For extremely hard rock applications, consider the enhanced versions with additional carbide reinforcements.

    2. Bit Size and Cutting Diameter – Eagle Claw bits are available in various cutting diameters, including 3-1/2", 5", 6-1/2", and other sizes.Select a diameter that matches your pilot bore requirements and the specifications of your drilling project.

    3. Thread Connection Type – Ensure compatibility with your existing drill string. Common connections include 2-3/8" Reg, 2-7/8" Reg, and Tri-Con connections.Using mismatched threads can introduce risk of thread damage, vibration, or premature wear.

    4. Housing Compatibility – The Eagle Claw SD Bit is compatible with SD-style transmitter housings.Confirm that your housing style (thread-on or side-load) matches the bit's rear thread.

    5. Rig Torque and Power – Verify that your rig's torque output is appropriate for aggressive carbide cutting tools.The Eagle Claw is designed to run efficiently on standard rigs without sacrificing steering capability.Compatible rig models include D23x30 S3, D24x26, D33x44, D36x50, JT24, JT25, JT30, JT40, DD4, and many others.

    6. Cutter Tooth Configuration – Eagle Claw SD bits support four cutter tooth options: standard conical, large conical, dome, and large conical with chunky hardfacing.This modular system allows you to customize cutting performance to match changing ground conditions without replacing the entire tool. Cutter teeth can be mixed and matched to optimize penetration, durability, and steering response.

How to Identify High-Quality Eagle Claw Products

When evaluating Eagle Claw quality, consider the following indicators:

   1. Material and Construction – High-quality Eagle Claw bits are manufactured using heat-treated alloy steel with strategically placed carbide reinforcements. Look for carbide button blocks in all high-wear areas to maximize durability.The body should feature a perfectly balanced cutting design for smooth, efficient operation.

    2. Carbide Quality and Coverage – Premium Eagle Claw bits feature dome carbides that provide excellent wear resistance without cutting the top of the hole, preserving steering surfaces. Higher-quality versions boast twice as many carbides as standard models, with chunky hardfacing applied in spiral formations around cutter teeth for better bite, even rotation, and longer service life.

    3. Manufacturing Standards – Seek suppliers with robust quality control systems, advanced production processes, and testing equipment. Complete heat treatment of the housing ensures maximum durability. The availability of cementing carbide inlay facilitates penetration of hard ground.

    4. Design Features – Quality Eagle Claw bits incorporate:

• Aggressive tri-tooth carbide cutting action for the hardest conditions

• Conical steering face for quicker reaction to directional pushes

• Minimal vibration to protect the drill stem and rig

• Built-in check valve to minimize clogging

• Straight-thru knockout holes for quick, easy carbide cutter tooth changes

    5. Supplier Reputation – Evaluate potential suppliers based on:

• Technical strength in hard alloy materials, drilling tool design, and manufacturing

• Comprehensive after-sales service, including installation support, operation training, troubleshooting, and maintenance

• Industry reputation, customer reviews, and successful collaboration cases

Market recognition and proven field performance.

    6. Cost vs. Value – While price competitiveness is important, it should not be the sole determining factor. HDD bits like the Eagle Claw SD often provide the best value for money; your initial investment may be greater than buying a typical aggressive bit, but you will wear out ten or more blades before needing to rebuild your Eagle Claw. Consider whether the supplier can help reduce overall costs through customized solutions and optimized production processes.

The Eagle Claw represents two decades of innovation in horizontal directional drilling, offering contractors a reliable solution for challenging hard ground conditions. By carefully matching the bit to your specific ground conditions, rig specifications, and project requirements, and by selecting products from reputable manufacturers with proven quality standards, you can maximize drilling efficiency, extend tool life, and achieve successful project outcomes.
